How Does Flood Risk in Richmond Affect Structural Foundation Design?

Richmond upon Thames includes significant areas within Flood Zones 2 and 3, particularly along the river corridor from Twickenham through Richmond town centre to Kew. For structural engineers, this means foundation design must account for elevated groundwater levels, potential flood loading, and the specific ground conditions found in river terrace deposits.

Ground Conditions Near the Thames

Unlike most of inner London, which sits on London Clay, Richmond's riverside areas overlie river terrace gravels and alluvial deposits. These granular soils have different bearing characteristics — they drain freely but can be loose at depth, and the water table is often only 1–2m below ground level. The structural engineer must specify a ground investigation (typically boreholes or trial pits) to determine exact conditions before designing foundations.

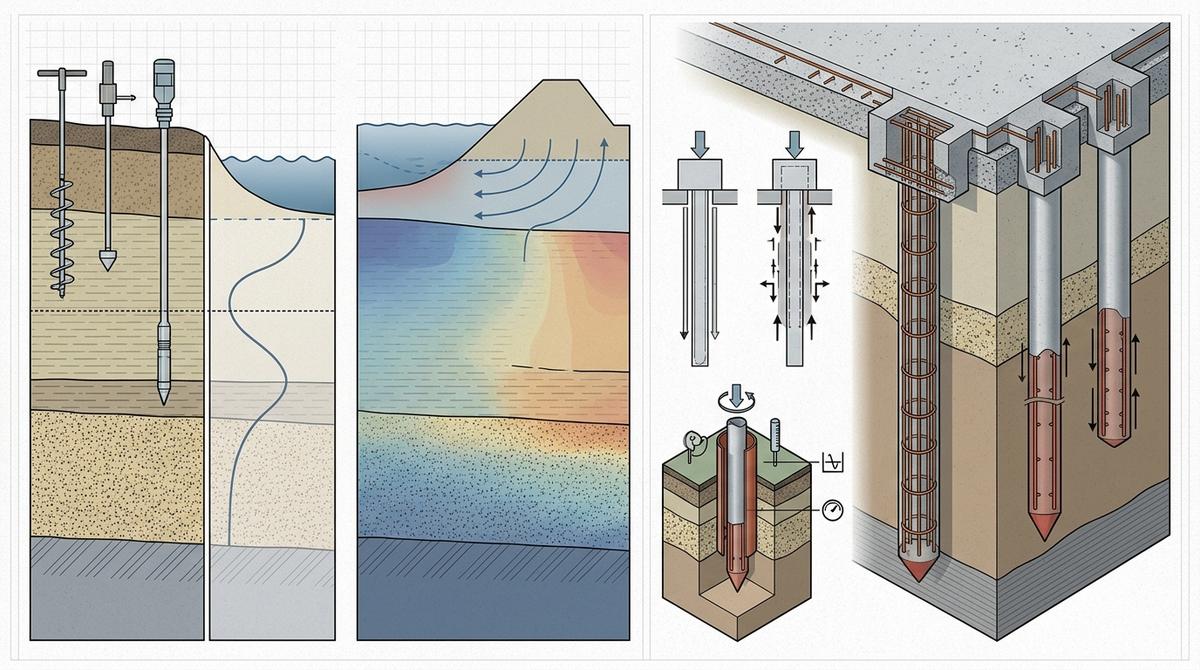

Foundation Options in Flood Risk Areas

• Traditional strip foundations — viable where ground conditions are good and the water table is below formation level, but may require dewatering during construction
• Piled foundations — mini-piles or CFA piles driven or bored to a competent stratum below the alluvium; essential where bearing capacity at shallow depth is insufficient
• Raft foundations — a reinforced concrete slab that distributes loads over a large area; useful where differential settlement is a concern
• Flood-resilient detailing — raising finished floor levels, using water-resistant materials below the design flood level, incorporating voidable underfloor spaces

Structural Flood Resilience

Beyond foundation design, the structural engineer considers hydrostatic pressure on basement walls (if applicable), buoyancy uplift on lightweight structures, and the impact of repeated wetting and drying cycles on structural materials. Richmond's Environment Agency flood maps and the borough's Strategic Flood Risk Assessment inform these calculations.

Bourdon Hill's engineers have designed foundations for extensions and new builds across Richmond's flood-affected areas. We coordinate with flood risk consultants and geotechnical engineers to deliver foundations that are safe, compliant, and buildable.
