What Structural Calculations Are Needed for a Side-Return Extension in Wandsworth?

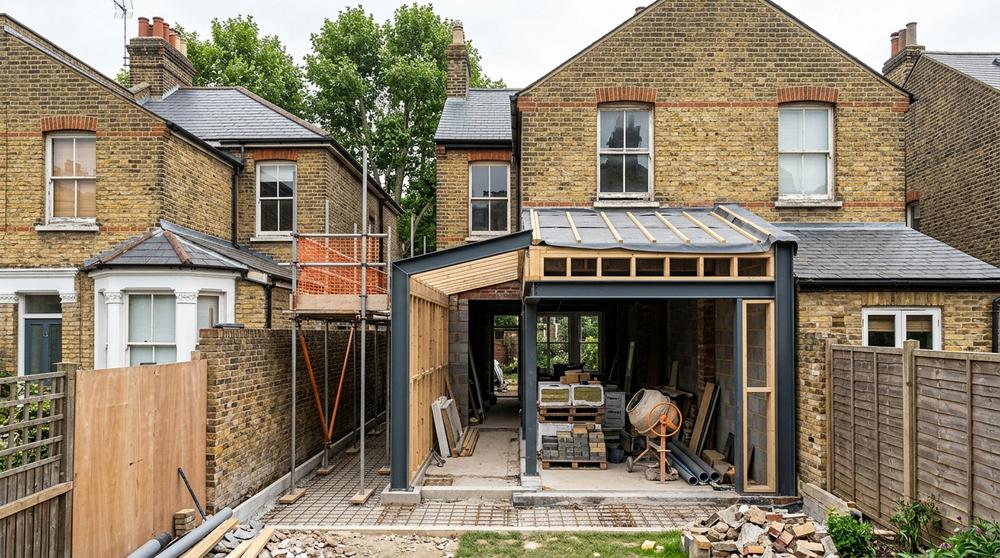

The side-return extension — infilling the narrow alley alongside the kitchen on a Victorian or Edwardian terrace — is Wandsworth's signature home improvement. It transforms a dark, narrow kitchen into a bright, open-plan living space. But the structural engineering is more involved than the modest footprint suggests.

Removing the Side Wall

The external side wall of the original kitchen is typically load-bearing — it supports the first floor and sometimes the rear roof slope. Removing it requires a steel beam spanning the full length of the new opening. This beam carries significant loads and the structural engineer must calculate its size precisely, accounting for dead loads (masonry, floor structure), live loads (furniture, occupants), and any point loads from above.

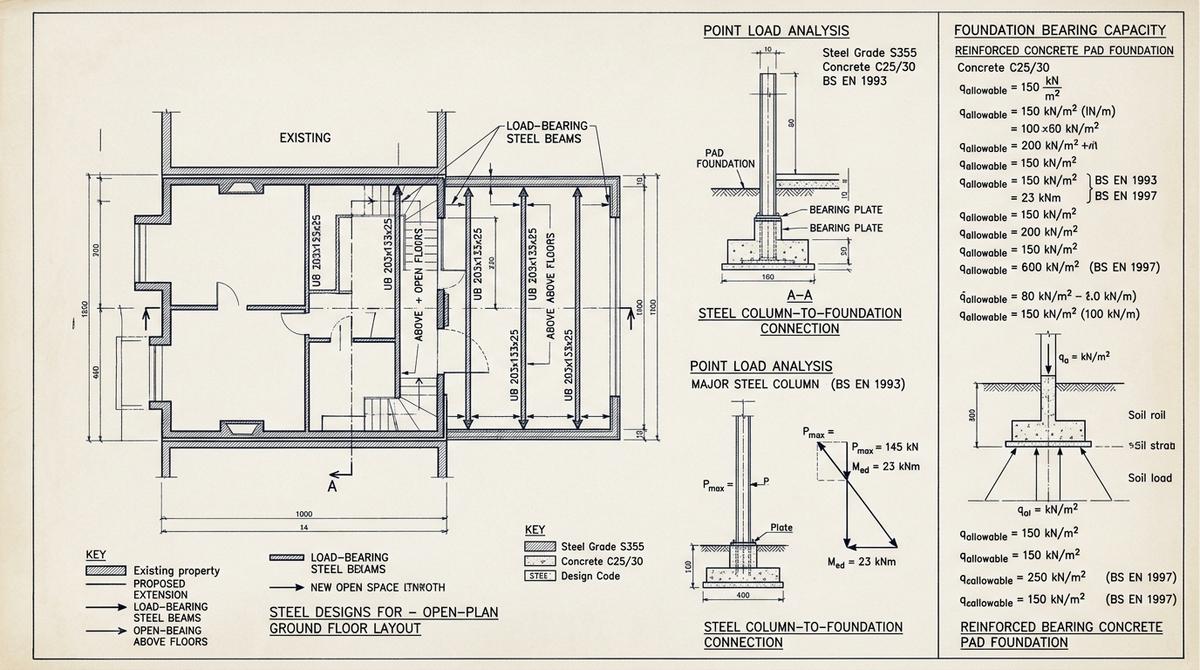

Key Structural Calculations

• Steel beam design — typically a UB or UC section, designed to BS EN 1993 (Eurocode 3) for bending, shear, and deflection
• Bearing pressure check — ensuring the concentrated beam reactions don't crush the existing masonry at each support point
• Foundation design for the new side-return walls — strip foundations on London Clay, typically 1.0–1.5m deep depending on tree proximity
• Flat roof structural design — timber or steel joists spanning between the new external wall and the original party wall or house wall
• Drainage and services coordination — structural openings must accommodate new soil pipes and drainage runs

Wandsworth Building Control

Wandsworth's Building Control officers are experienced with side-return extensions and expect a complete structural package: calculations, general arrangement drawings, steelwork details, and foundation sections. Submitting a thorough package from the outset avoids queries and delays.

Bourdon Hill designs side-return extensions across Wandsworth — from Tooting terraces to Balham period houses. Our structural engineers produce the full calculation and drawing package your builder needs.
